Laser Cut Hypotubes vs. Braided Reinforcement: Superior Ovalization Resistance in Catheter Systems

Understanding Ovalization in Catheter Systems

‍

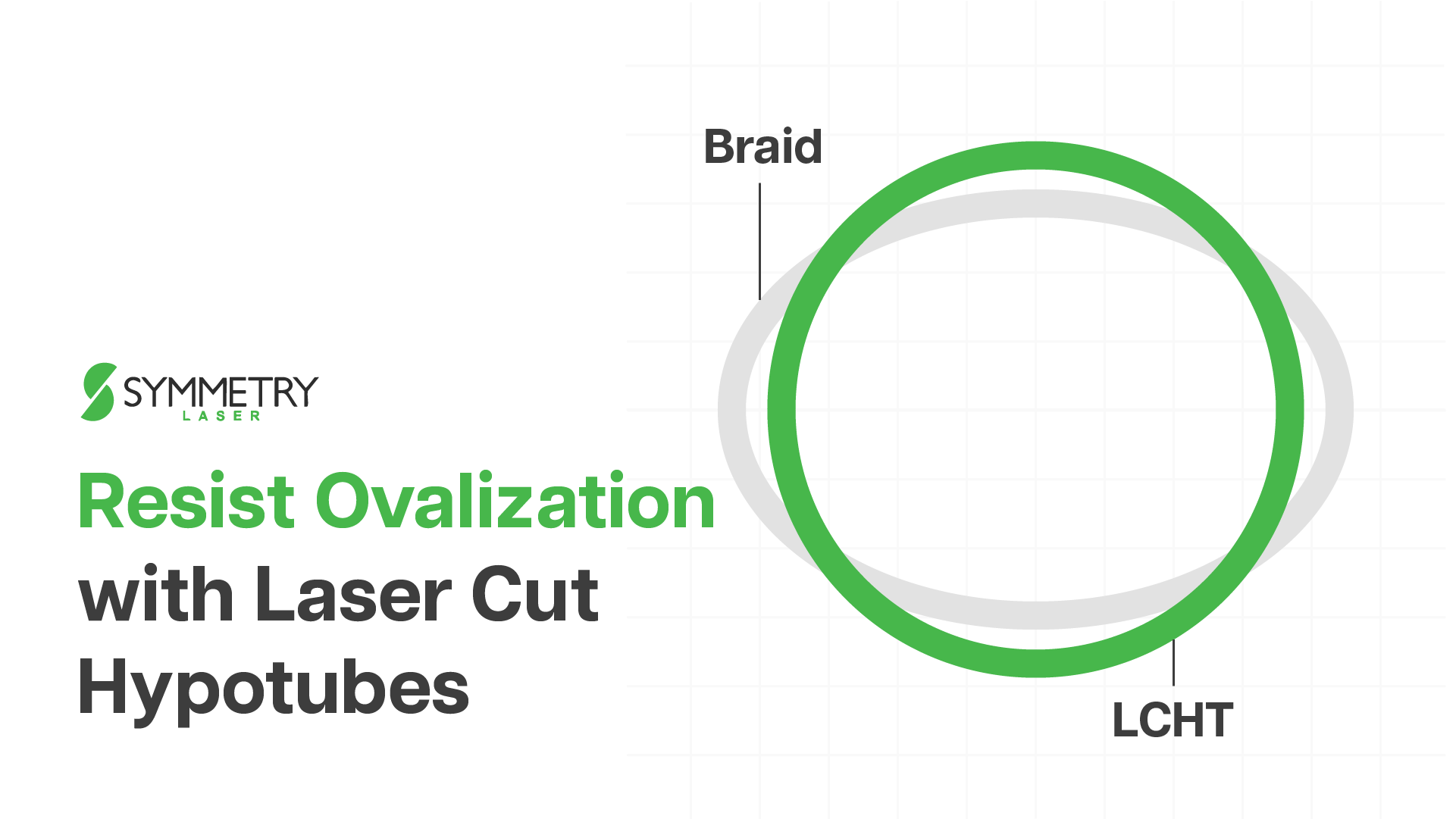

Ovalization refers to the deformation of a catheter's circular cross-section into an elliptical shape when subjected to bending forces, compression, or torsional loads. This phenomenon is particularly problematic during catheter navigation through tortuous vascular pathways and when clinicians apply steering forces to position the device. Excessive ovalization can lead to:

‍

-Reduced inner lumen diameter, compromising device functionality

-Increased friction with guidewires or therapeutic devices

-Compromised pushability and torque transmission

-Potential kinking or collapse under extreme loads

‍

The Structural Limitations of Braided Reinforcement

‍

Traditional braided reinforcement consists of interwoven metal or polymer filaments arranged in a helical pattern. While braiding offers flexibility and some degree of kink resistance, its fundamental architecture creates inherent vulnerabilities to ovalization:

Discontinuous Load Distribution: Braided structures rely on friction between individual filaments to maintain structural integrity. Under bending or compressive forces, these filaments can shift relative to one another, allowing the cross-section to deform asymmetrically.

Variable Wire Tension: The tensioning of individual wires in a braid is difficult to control precisely during manufacturing. Inconsistent tension creates weak points where ovalization preferentially occurs under load.

Limited Geometric Control: The crossing pattern of braided wires is constrained by weaving mechanics, limiting the ability to engineer specific mechanical properties in targeted regions of the catheter shaft.

‍

The Monolithic Advantage of Laser Cut Hypotubes

‍

Laser cut hypotubes represent a fundamentally different approach to catheter reinforcement. Starting with a seamless in appearance metallic tube, precision laser cutting creates intricate patterns that provide flexibility while maintaining structural integrity. This monolithic structure offers several critical advantages for ovalization resistance:

‍

Continuous Material Structure

‍

Unlike braided systems where multiple filaments must work together through friction, laser cut hypotubes maintain material continuity throughout the reinforcement structure. The cut pattern creates a network of interconnected struts that function as a unified mechanical system. When bending, vacuum or compressive forces are applied, the stress is distributed across the entire lattice structure rather than concentrated at wire crossover points.

This continuous architecture ensures that the circular cross-section is supported by a geometrically optimized framework that resists deformation in all radial directions simultaneously.

‍

Engineered Cut Patterns for Radial Strength

‍

The geometric freedom afforded by laser cutting allows engineers to design cut patternsspecifically optimized for ovalization resistance. Common design strategies include:

Optimized Strut Geometry: The width, thickness, and orientation of individual struts can be precisely controlled to balance flexibility in the axial direction with stiffness in the radial direction. This allows the catheter to bend smoothly while maintaining its hoop strength.

Variable Stiffness Transitions: By modifying cut patterns along the length of the hypotube, designers can create smooth stiffness gradients that distribute bending stresses more evenly, reducing localized ovalization at transition zones.

‍

Superior Material Utilization

‍

The monolithic structure of laser cut hypotubes utilizes material more efficiently than braided systems. In a braid, the effective wall thickness varies circumferentially depending on wire overlap and spacing. This creates circumferential variation in radial stiffness, making certain orientations more susceptible to ovalization.

Laser cut hypotubes start with a uniform wall thickness, and the cut pattern can be designed to maintain more consistent circumferential properties. This uniformity ensures that the catheter responds predictably to forces from any direction, a critical consideration during complex steering maneuvers.

‍

‍

Performance in Tortuous Anatomy

‍

When catheters navigate through tortuous vascular anatomy, they experience complex multi-planar bending combined with external compressive forces from vessel walls. This challenging loading condition is where the ovalization resistance of laser cut hypotubes becomes particularly valuable:

Maintained Lumen Geometry: The superior hoop strength of laser cut patterns ensures that the inner lumen maintains its circular profile even in tight bends. This is essential for smooth advancement of guidewires, balloons, stents, or other therapeutic devices.

Predictable Bending Behavior: The engineered cut pattern creates a more linear relationship between applied bending moment and resulting curvature, without the sudden cross-sectional collapse that can occur in braided structures when wire shifting occurs.

Reduced Friction: By maintaining a circular cross-section, laser cut hypotubes minimize friction with inner devices, improving overall system performance and reducing the force clinicians must apply during procedures.

‍

Enhanced Steering Performance

‍

During catheter steering, clinicians apply torque and push/pull forces to position the device. These manipulations create complex stress states that can induce ovalization in poorly designed reinforcement structures. Laser cut hypotubes excel in these conditions:

Torsional Rigidity: The monolithic structure provides excellent torque transmission without the filament rotation that occurs in braids. This torsional rigidity works synergistically with ovalization resistance to maintain lumen geometry during rotational movements.

Buckling Resistance: When push forces are applied to a catheter in a bent configuration, compressive stresses on the inner curve can cause buckling or ovalization. Engineered patterns in laser cut hypotubes distribute these compressive loads more effectively, maintaining structural stability.

Steering Responsiveness: With consistent cross-sectional geometry maintained throughout steering maneuvers, clinicians experience more predictable device response and improved tactile feedback.

‍

Manufacturing Precision and Consistency

‍

Beyond the inherent structural advantages, laser cutting technology enables manufacturing precision that directly contributes to ovalization resistance:

Sub-Millimeter Accuracy: Modern fiber lasers can cut features with tight tolerances, ensuring that every strut and connection point is exactly as designed. This precision eliminates the geometric variability inherent in braiding processes.

Reproducibility: Computer-controlled laser cutting produces identical patterns across production runs, ensuring consistent mechanical properties from device to device. Clinicians can rely on predictable performance across their entire inventory.

Complex Geometries: Laser cutting enables patterns that would be impossible to achieve through braiding, including asymmetric designs, variable-density regions, and other integrated features.

‍

Material Selection and Performance

‍

Laser cut hypotubes are typically manufactured from high-performance alloys such as 304 or 316 stainless steel, or nitinol. These materials offer excellent biocompatibility combined with mechanical properties optimized for catheter applications:

Strain Hardening: The laser cutting process and subsequent post processing can induce favorable surface conditions that enhance fatigue resistance without compromising ovalization performance.

‍

Conclusion

‍

The superior ovalization resistance of laser cut hypotubes compared to traditional braided reinforcement systems stems from fundamental structural advantages: monolithic material structure, engineered geometric patterns optimized for hoop strength, and manufacturing precision that ensures consistent performance. As catheter-based interventions become increasingly complex and navigate more challenging anatomical pathways, the performance advantages of laser cut hypotube reinforcement become ever more critical to procedural success.

At Symmetry Laser, we leverage advanced our custom designed fiber laser based tube cutting technology and can help with select cut pattern based on performance requirements to deliver hypotube solutions that push the boundaries of catheter performance. Our engineering team works closely with catheter manufacturers to develop custom reinforcement structures optimized for specific clinical applications, ensuring that ovalization resistance and overall mechanical performance meet the demanding requirements of modern interventional procedures.

For more information about how laser cut hypotubes can enhance your catheter system performance, contact the technical team at Symmetry Laser to discuss your specific application requirements.

‍
