THE MEDICAL DEVICE INDUSTRY'S CHOICE FOR

LASER
CUTTING

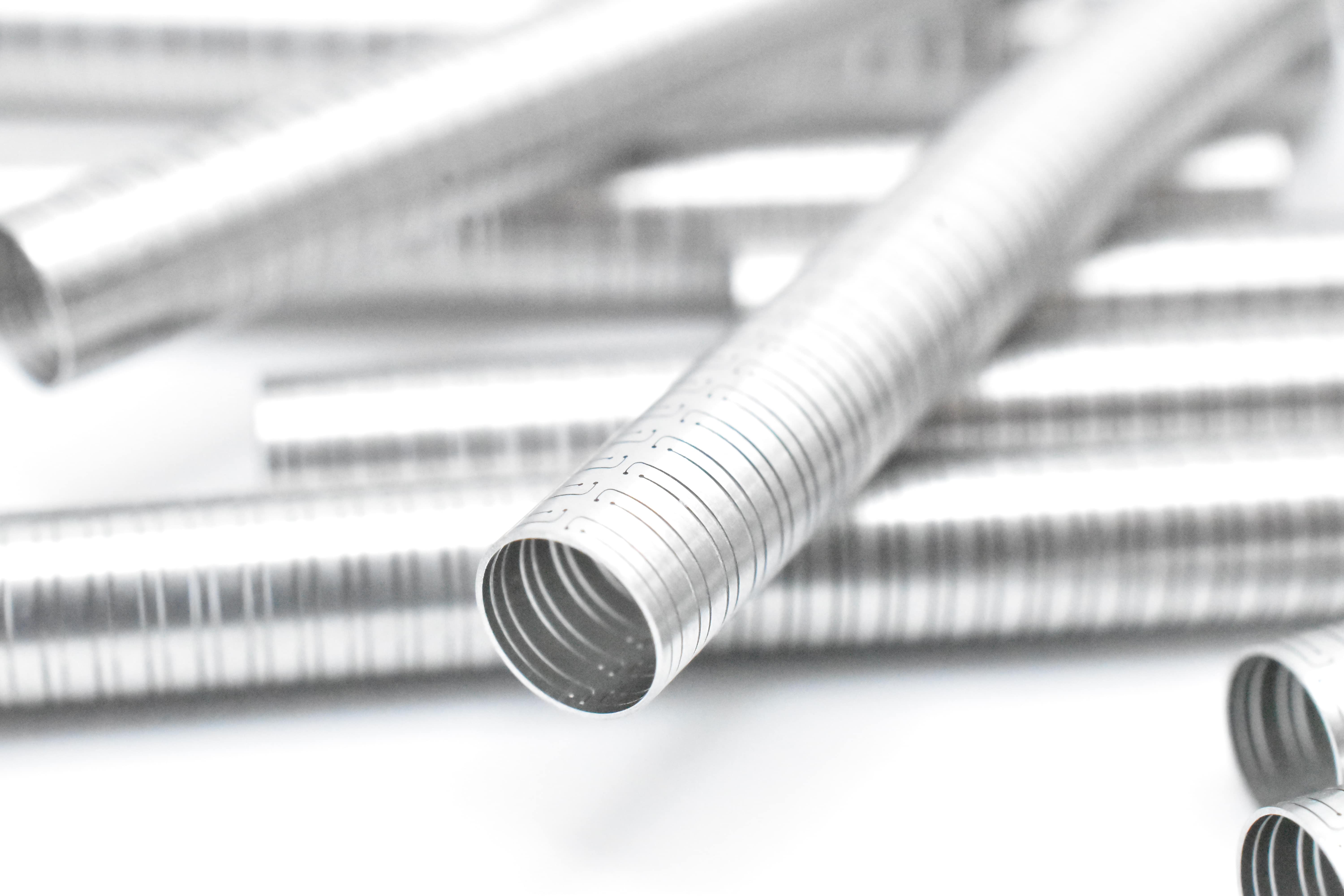

Symmetry Laser leads the industry in laser cut hypotube solutions for catheters from quick turn R&D prototyping to high volume manufacturing.

View Capabilities
TOLERANCES, KERF, ETC...

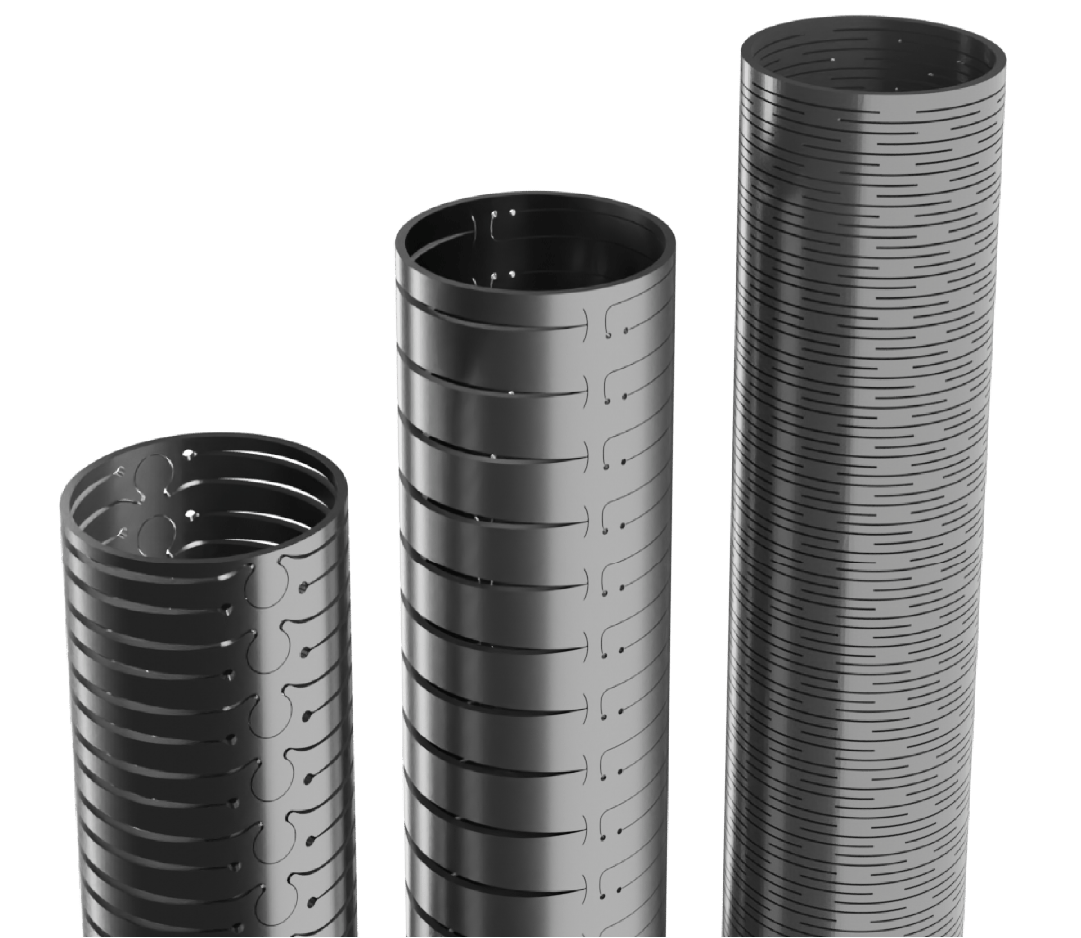

CUSTOM LASER CUT

PATTERNS

// OUR CAPABILITIES

LASER CUTTING SPECIFICATIONS

CUSTOM BUILT
LASER CUTTING EQUIPMENT

TYPICAL TOLERANCE

0.0003"

TYPICAL KERF WIDTH

0.001"

WALL THICKNESS

.0007 - .05"

MATERIAL LENGTH

up to 10'

TUBE DIAMETER

.006 - 1.125"

PART LENGTH

.005" - 10'

// STOCKED MATERIALS

CHOOSE YOUR MATERIAL

1 MILLION + FEET
STOCKED IN OUR FACILITIES

304

304L

316

316L

17-7

17-7 CH900

STAINLESS
STEEL

A popular choice for medical devices as well as industrial applications, Stainless steel provides excellent corrosion resistance and mechanical strenght.

SE-508

5052

6061

NITINOL
‍

Nitinol has super-elastic properties and shape memory which makes it a unique material for catheter systems.

MP35N

L605

COBALT
CROME

A high-strength metal alloy composed primarily of cobalt and chromium known for its exceptional durability, corrosion resistance, and biocompatibility.

SEE OUR LIST OF 1M+ FEET OF STOCKED TUBES

WHY LASER CUT?

Laser cutting gives engineers an edge over
traditional braided systems.

Thin walled nitinol, stainless steel and cobalt chrome laser cut hypotubes.

LOW PROFILE

Thin walled hypotubes maximize the inner lumen while maintaining the strength needed for your device.

Customized laser cut hypotubes by Symmetry Laser.

CUSTOMIZATION

LCHT are fully customizable simplifying the catheter layup and enabling a truly variable flex profile with smooth transitions.

Laser Cut Hypotubes have superior ovality compared to braided or coiled catheters.

OVALIZATION

LCHT provide a superior product in terms of ovalization around a tight bend.

TORQUE

LCHT can be optimized to have a 1:1 torque response while maintaining a customizable and flexible profile.

KINK RESISTANCE

LCHT can drastically improve kink performance when compared to traditional braided catheters and coils.

Welding and Electropolishing for Laser Cut Hypotubes for Simplified Catheter Manufacturing.

SIMPLIFIED MFG

LCHT can dictate the flex profile of your catheter, eliminating the need for multiple polymers, drastically reducing the manufacturing time and cost of your device.
